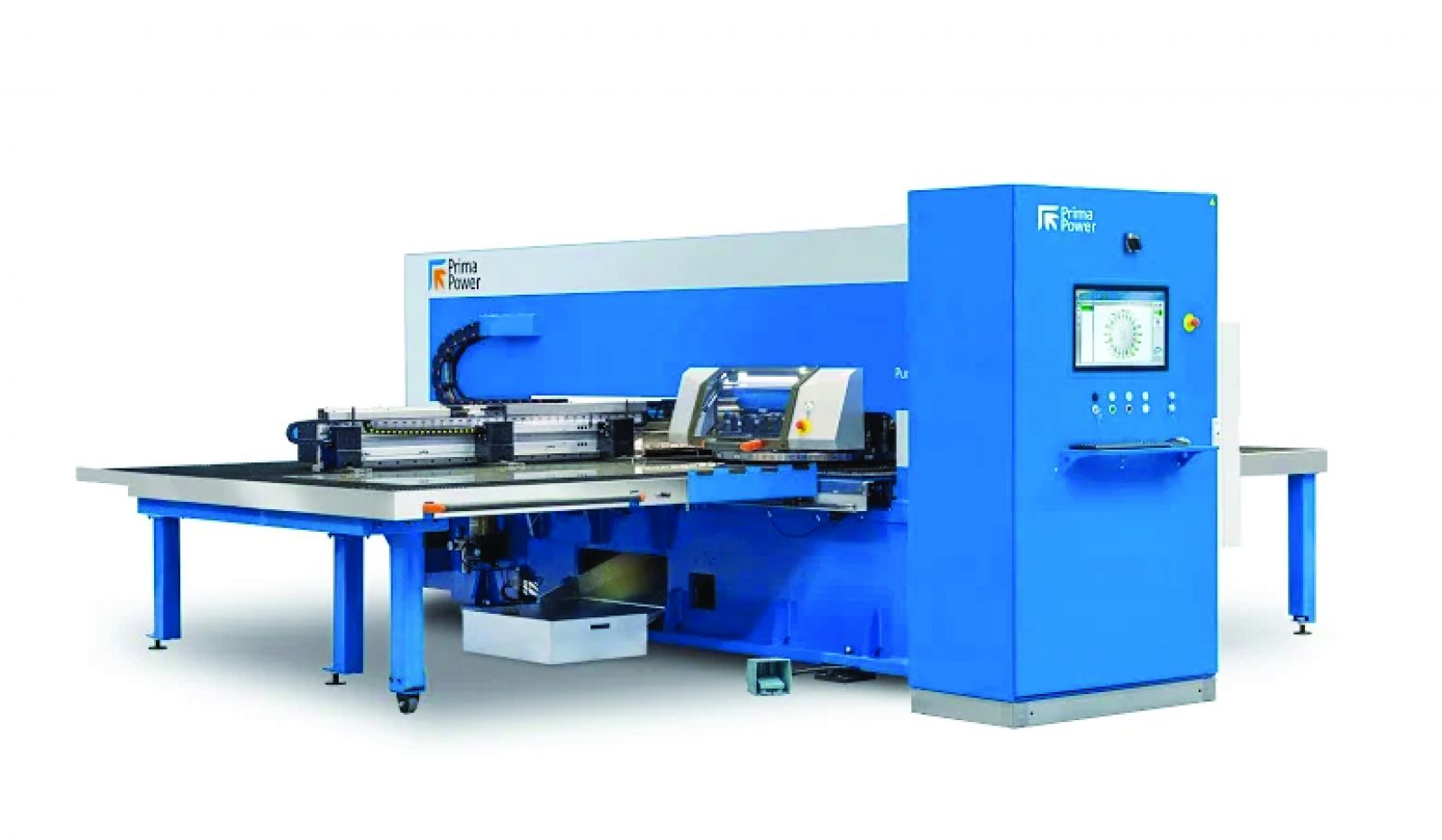

Prima Power Punch Sharp Servo-electric Punching Technology
.jpg)
Users can enjoy state-of-the art in the servo-electric punching technology with outstanding quality and reasonable investment.
Prima Power Punch Sharp offers state-of-the art in servo-electric punching technology, based on pioneering experience, in an eminently flexible and affordable package. The genius of servo-electric punching is how it combines energy saving and ergonomics with superb accuracy and productivity. Punch Sharp has been designed to offer versatile capacity made easy to utilize; machine control and user interface software with touch screen panel ensure fast setup and convenient operation.
Punch Sharp Advantages
- State-of-the art in servo-electric punching technology, eminently flexible and affordable
- Manufacturing cell can be equipped with automation solutions to achieve unattended production
- The automation compact layout needs small floor space
- The brush can move up and down to avoid scratches on expensive materials
- Lifting brushes for extra protection of sensitive material surfaces
- Maintain low cost
- High molding capacity = quick setup and shorter waiting time
Main Characteristics of Punch Sharp
- No hydraulic oil = no hazardous waste
- Operated on one side = efficient factory logistics
- Less maintenance = higher productivity
- Average power consumption: 4kW = less energy consumption
No Set Up
No additional downtime for mold changeover, no setup required - all molds are activated and can be used immediately.
- Customized turret design
- Multi-Tools®
- Indexable rotating mold
- High tooling capacity
The tool can be selected flexibly according to application requirements. The turret can hold up to 384 standard or 128 index tools simultaneously. Both the Sharp and Genius series can choose 16-hole or 20-hole turret. The turret is also compatible with Amada® tools.
Multi-Tools®
The turret can be equipped with Multi-Tool® to increase the tool capacity. Multi-Tool® itself is like a turret with a separate tool holder. Each tool can be selected by the rotation and locking mechanism of the machine tool. Multi-Tool® mainly includes fixed Multi-Tool®, fixed-angle drop-in Multi-Tool® and indexable drop-in Multi-Tool®.

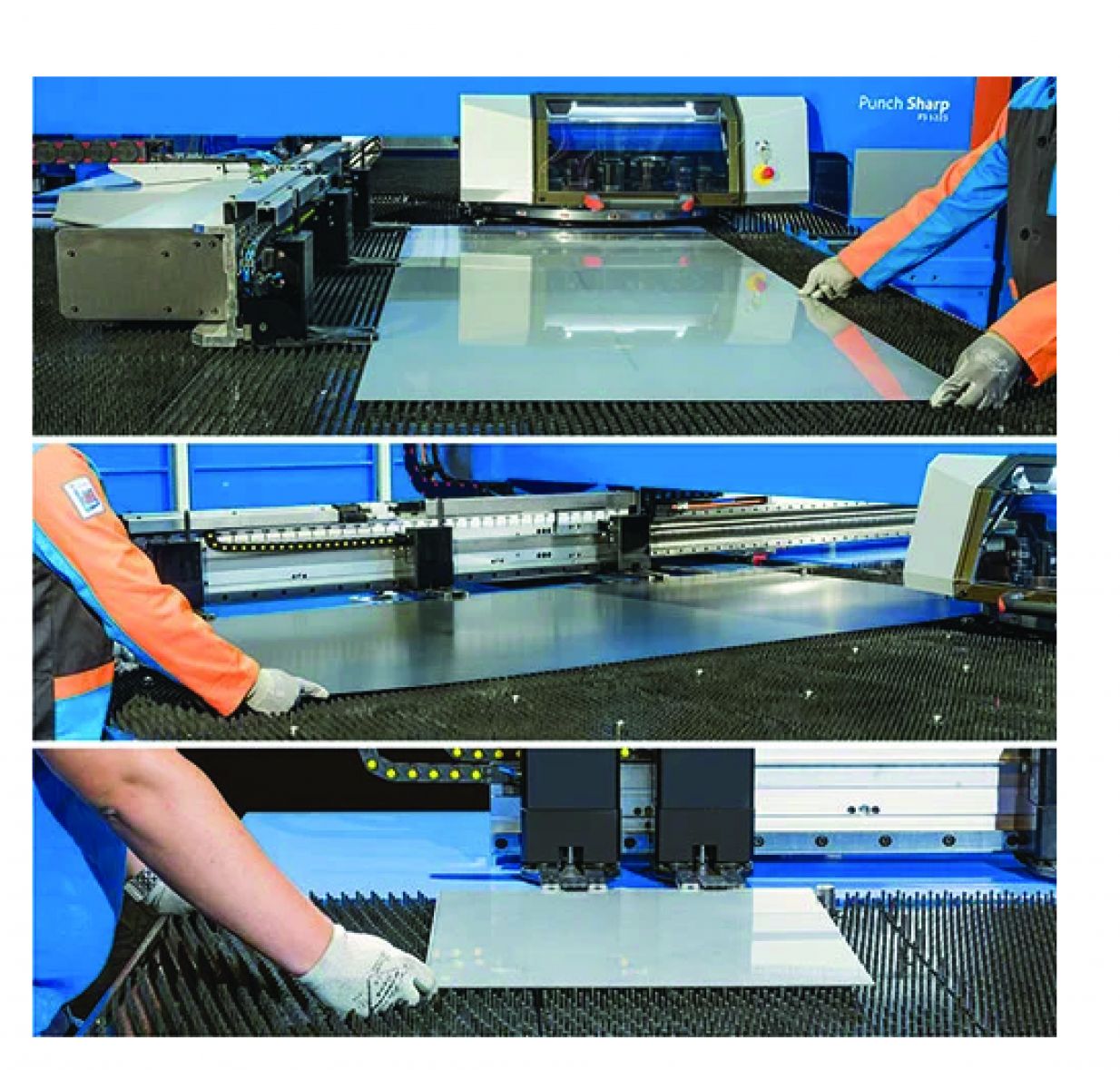

Easy Loading Solution
The movable workbench makes manual loading and unloading more convenient. The workbench can be locked in different positions. So even the smallest sheet can be easily reached.
.jpg)
The vertically movable holder can easily load heavy sheet.
Three models for selection: PS1225, PS1530 and PS1540
Sheet size X x Y, max.
PS1225: 2,530 mm x 1,270 mm
PS1530: 3,074 mm x 1,565 mm
PS1540: 4,300 mm x 1,565 mm
Max. sheet thickness: 8 mm
16 station 384/128
20 station 280/80
Positioning speed, max. 108 m/min
Index tool rotation speed: 133 rpm
The Sharp series has also optional Dynamic performance to offer better productivity.
Ram force, max. 170 kN, 200 kN or 230 kN
PS Dynamic: 250 kN
Hit speed, max. 700 hpm
PS Dynamic: 900 hpm
(The information in this article is provided by Prima Power)
